Place of Origin:
CHINA
Brand Name:
CT Steel Structure
Certification:
ISO9001:2015
Model Number:
Exhibition86201
Document:

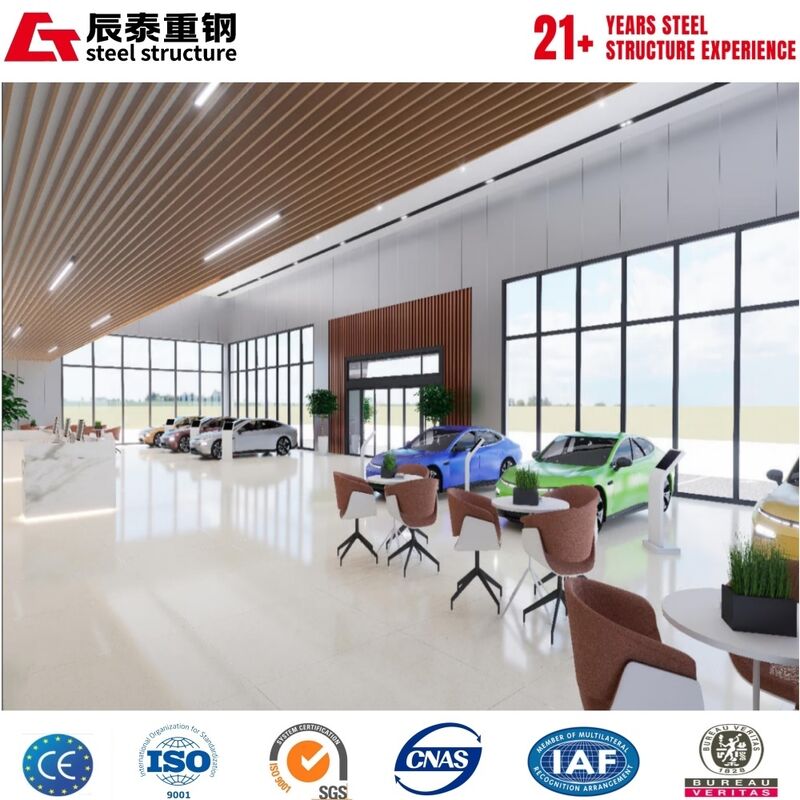

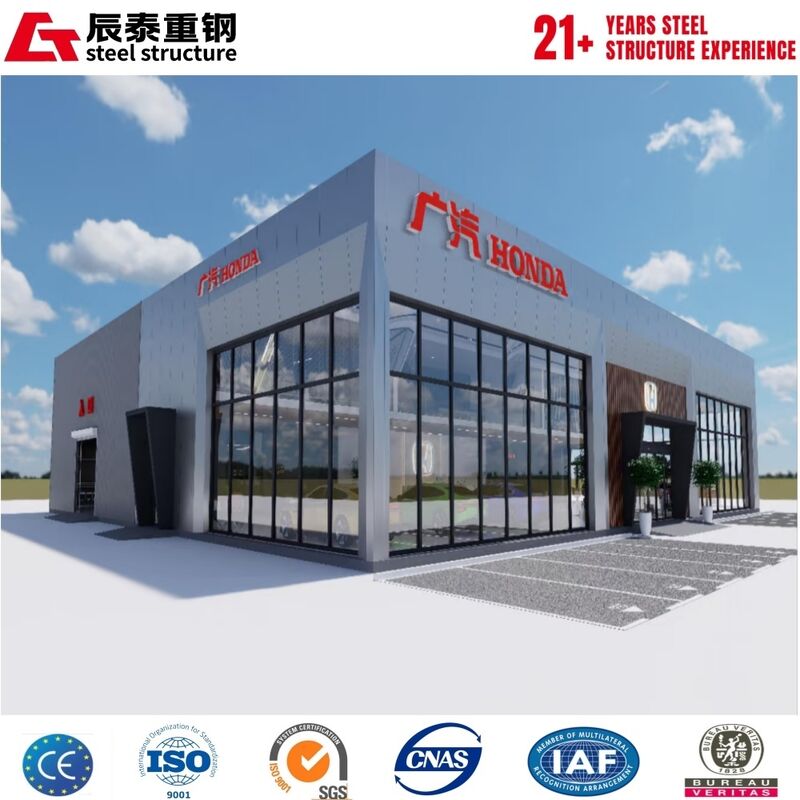

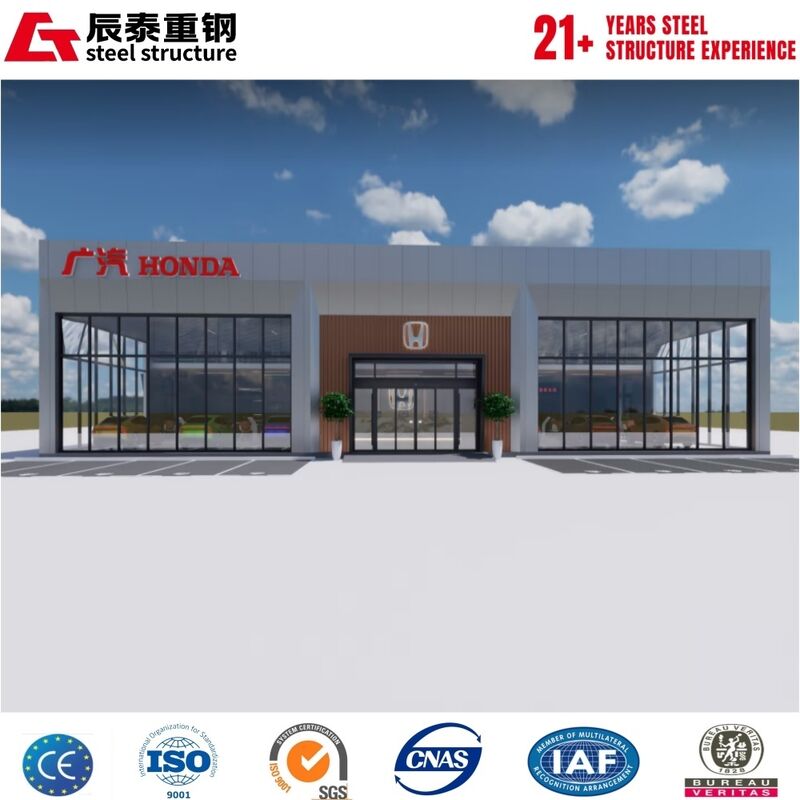

Commercial exhibition buildings constructed with H-beams, steel trusses, and portal frames as the main load-bearing framework, combined with glass curtain walls and PV trapezoidal color steel cladding panels, are mostly used in car dealerships, product showrooms, exhibition halls, and corporate image exhibition halls.
Core Structural Components
1.Main Steel Structure: H-beam main frame, steel columns, roof trusses, and supporting tie rods; prefabricated in the factory.
2.Exterior Enclosure: Insulated Low-E glass curtain wall, aluminum panels, PV-6 trapezoidal color steel wall panels, and a low brick-concrete wall at the base.
3.Roofing System: Color steel profiled roofing sheets + rock wool/PU insulation sandwich panels, TPO waterproof membrane, skylights, and drainage gutters.
4.Supporting Components: Steel structure canopy, glass sliding doors, ventilation louvers, staircase mezzanine, and steel frame for advertising spaces.
Core Advantages:
1.Large span, column-free design, creating a spacious and airy interior exhibition space;
2.Factory prefabrication and on-site assembly shortens the construction period by 50% compared to concrete buildings;
3.Lightweight construction reduces foundation costs and keeps overall costs under control; Excellent earthquake and snow resistance, making it highly adaptable to earthquake-prone coastal areas;
4.Flexible design, allowing for curved surfaces and open lobbies, resulting in a modern and sophisticated appearance; 100% recyclable steel, and components that can be disassembled, moved, and reused;
5.Convenient for future renovations and spatial partition adjustments, adapting to changes in exhibition hall business formats.
Standard Dimensions
1.Span: 10-40m per span, large column-free space;
2.Eaves Height: 4-12m, can be used for double-height atriums;
3.Roof Slope: Minimum 5% (compatible with PV-6 corrugated steel roofing drainage);
4.Standard Bay Width: 6m/7.5m/9m, modular standardized design.
Load Design Parameters:
1.Wind Load and Snow Load: Reinforced according to local meteorological standards;
2.Seismic Resistance: Adaptable to seismic fortification levels in various countries;
3.Roof Load-Bearing Capacity: Suitable for mounting photovoltaic equipment, suspended ceilings, and large advertisements;
4.Ground Load-Bearing Capacity: Reinforced to accommodate heavy machinery and vehicle displays.
Optional Enclosure Materials:
1.Exterior Walls: Full glass curtain wall / Glass + PV color steel combination / 1.0/1.8/2m low brick-concrete wall at the bottom;
2.Insulation and Fireproofing: Rock wool sandwich panels, glass wool, EPS, PU polyurethane boards; Single-layer galvanized color steel tiles are available for those without insulation requirements;
3.Waterproofing: PV trapezoidal roof tiles + TPO single-layer waterproof membrane;
4.Lighting: Panoramic curtain wall side windows, electric ventilation skylights, sunshade louvers.
Supporting Facilities:
1.Doors and Windows: Glass sliding doors, electric roller shutters, swing entrance doors;

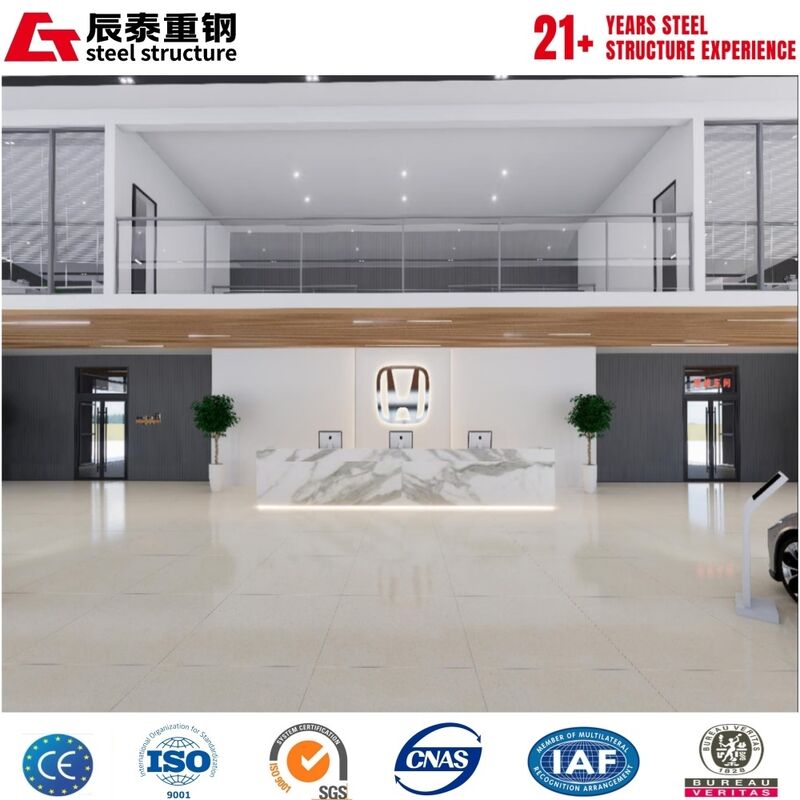

2.Functional Areas: Double-height exhibition hall, meeting rooms, second-floor office mezzanine, storage warehouse;
3.Specialized Systems: Roof drainage, fire protection system, pre-installed electrical wiring, lightning protection grounding, landscape steel structure canopy;
4.Equipment: Optional small overhead crane, pre-installed central air conditioning, multimedia large screen steel frame base.
Applicable Scenarios:
Automobile 4S showrooms, construction machinery exhibition halls, home building materials exhibition halls, corporate brand image showrooms, temporary exhibition centers, and cultural and creative art exhibition halls.
| Component | Specification |
|---|---|
| Main steel frame | H section steel beam and columns, painted or galvanized, galvanized C section or steel pipe |
| Secondary frame | Hot dip galvanized C purlin, steel bracing, tie bar, knee brace, edge cover etc. |
| Roof panel | Glass curtain walls and composite panels |
| Wall panel | Sandwich Panel or Corrugated Steel Sheet |
| Tie Rod | Circular Steel Tube |
| Brace | Round Bar |
| Knee Brace | Angle Steel |
| Roof Gutter | Color Steel Sheet |
| Connection method | High strength bolts |
| Doors and windows | Customized upon request |
| Bottom maintenance | Brick-concrete structure, height optional |
| Overall exterior design | Customizable |
Large span, column-free design, and spacious interior; combined with glass curtain walls and curved shapes for modern appearance.
Steel components prefabricated in factory and assembled on-site, reducing construction time by half compared to concrete buildings.
Lightweight design results in low foundation costs; components are disassembled and reused, saving relocation costs.
High-strength steel provides excellent earthquake and snow resistance; anti-corrosion coatings and TPO roof waterproofing ensure long service life.
Floor height, partitions, doors, and windows can be adjusted later for simple spatial layout modifications.
Steel is 100% recyclable; dry construction reduces construction waste, meeting international green building standards.
