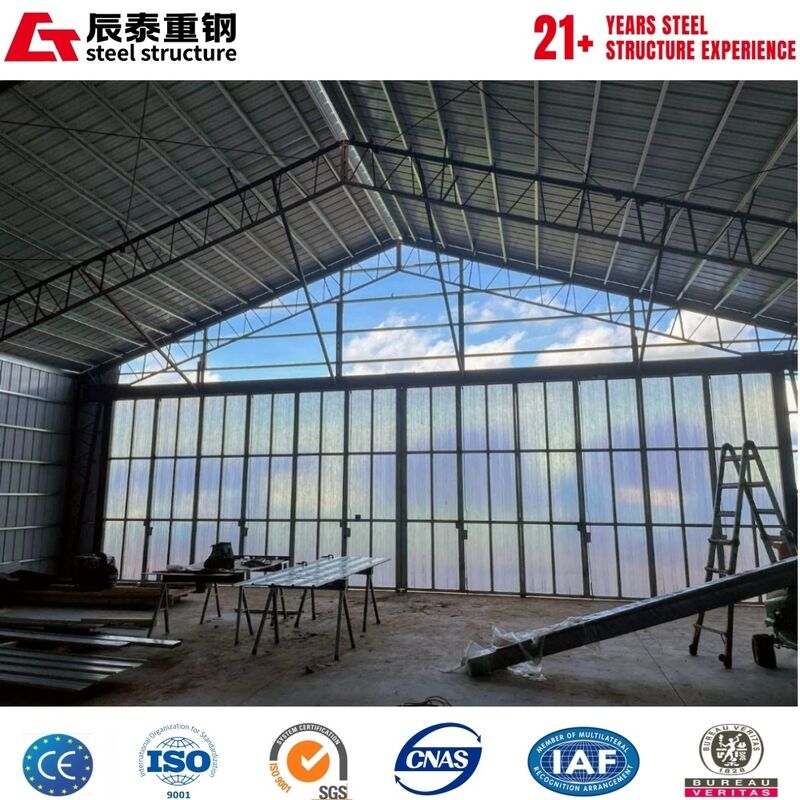

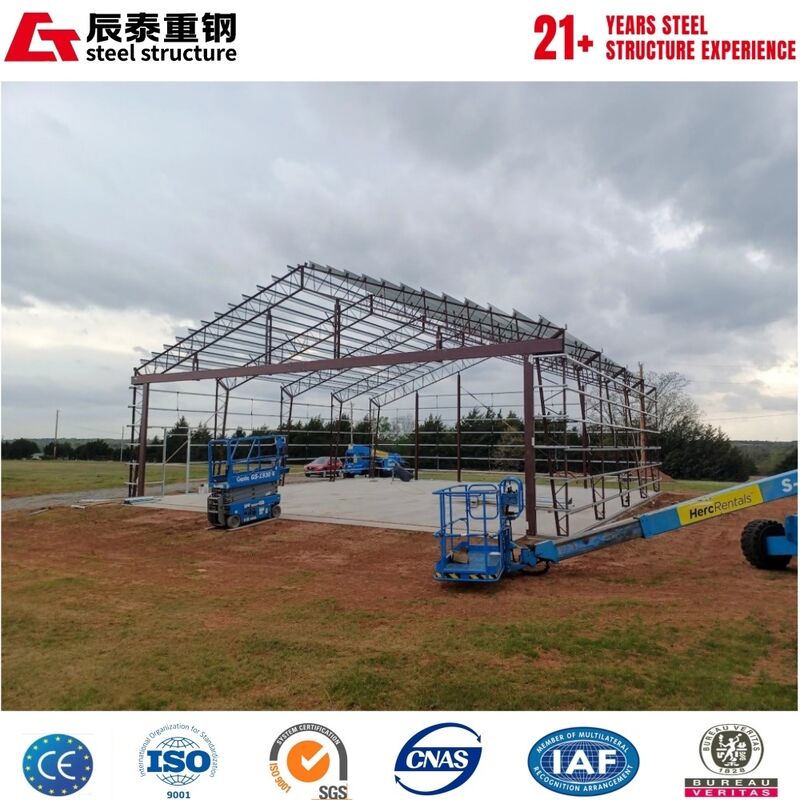

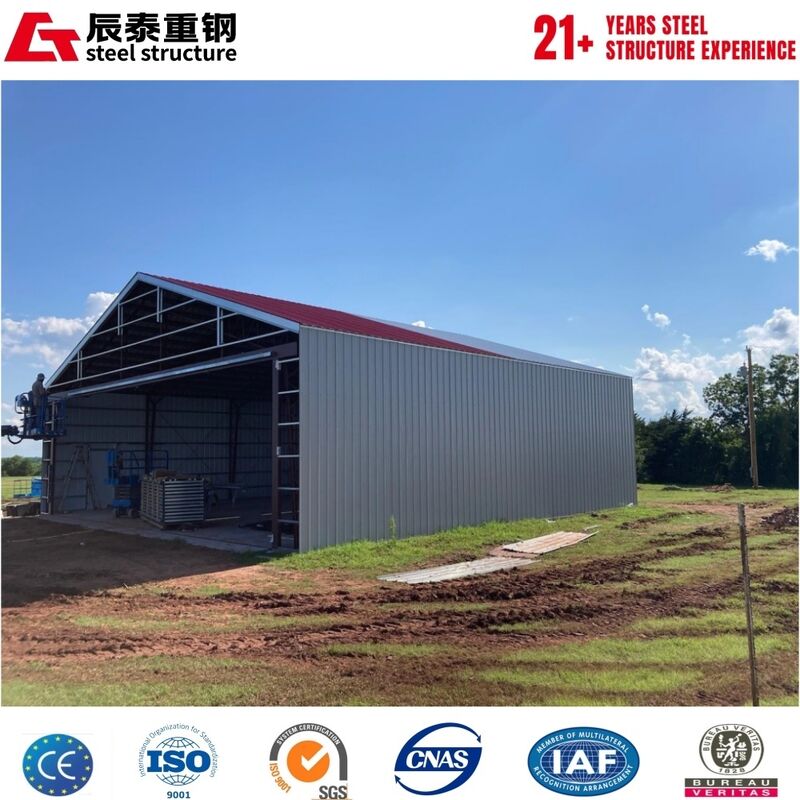

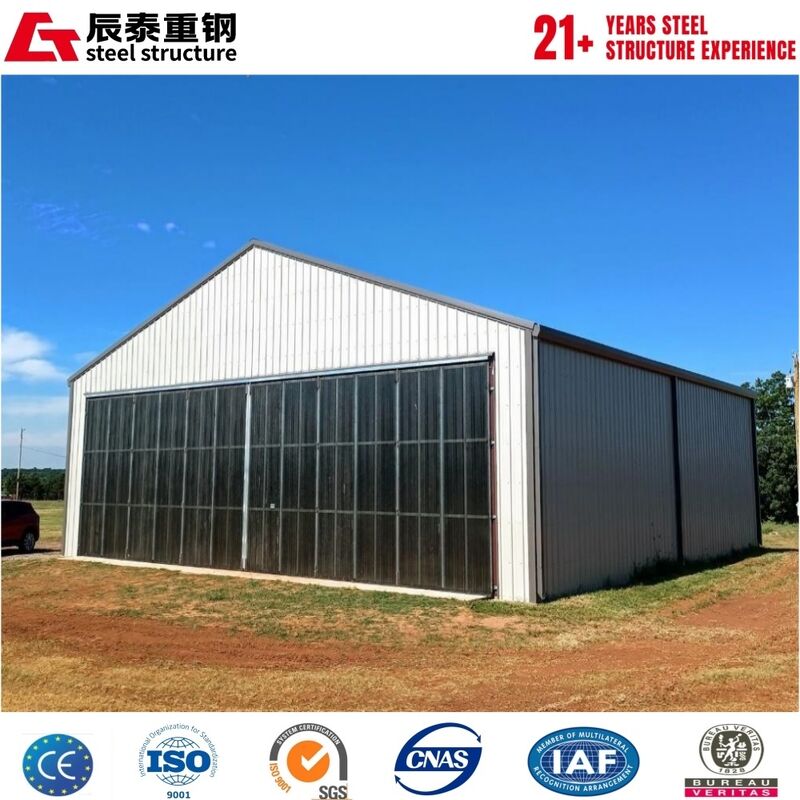

Large span space galvanized H-shaped steel structure aircraft hangar building

Large span space galvanized H-shaped steel structure aircraft hangar building

Steel structure aircraft hangars can achieve ultra-large span, such as the large civil aviation aircraft hangar with bolted ball node grid structure, the single can reach 150 meters, which can eliminate the interference of traditional columns to aircraft entry and exit and lifting operations, and the space utilization rate is increased by more than30%.

Common types include frame structure and portal steel structure. Frame structures are suitable for large civil aviation hangars, military maintenance hangars, etc., while portal structures are often used for general aviation hangars, maintenance workshops, etc., with a single span of 30-80 meters and a eaves height of 1025 meters, which can meet the parking and modification needs of various aircraft types.

Common types include frame structure and portal steel structure. Frame structures are suitable for large civil aviation hangars, military maintenance hangars, etc., while portal steel structures are often used for general aviation hangars, maintenance workshops, etc., with a single span of 30-80 meters and a eaves height of 10-25 meters, which can meet the parking and modification needs of various aircraft types.

​

Main material	H-Section Steel
	I-beams
	Box girders
	M12-bolt
Advantages	Strong seismic performance
	Large-span space is easy to realize
	The construction speed is fast
	The shape is unique
Packing	Component classification and preprocessing
	Composite packaging
	Strengthen fixation measures
	Identification callouts

​Product Advantages:

1. High-strength properties meet the demands of ultra-large load and span
The high-strength characteristics of steel structures are to supporting the core functions of aircraft hangars. Steel has extremely high tensile and compressive strength, and the steel columns and beams made from it can easily bear the weight of aircraft - whether it's civilian airliners weighing tens of tons or heavy military transport aircraft, the steel structure framework can provide stable support. More importantly, the high strength of allows for the design of ultra-large span column-free spaces, avoiding the obstacles that traditional structures with columns pose to aircraft entry and exit, parking, and maintenance.

2. Toughness and integrity ensure structural safety in extreme environments
The excellent toughness of steel structures gives them a significant advantage in dealing with external shocks. As facilities for storing highvalue aircraft, aircraft hangars need to withstand extreme weather such as strong winds, earthquakes, and heavy snow: steel can absorb energy through small deformations when stressed, rather than breaking brly like concrete, and even under the load of strong winds or the impact of seismic waves, the framework can maintain overall stability, reducing the risk of structural collapse.

3.weight characteristics simplify construction and reduce foundation costs
Compared to heavy materials such as concrete, steel structures have a lighter self-weight under the same load-bearing capacity, and this brings multiple conveniences to the construction of aircraft hangars. On the one hand, lightweight structures exert less pressure on the foundation, eliminating the need for complex deep foundation construction, in areas with complex geological conditions, which can reduce the material consumption and construction period of foundation treatment, significantly reducing the cost of foundation engineering. On the other hand, lightweight steel are more convenient to transport and hoist, and the on-site assembly efficiency is far higher than that of concrete pouring - large steel components can be prefabricated in the, and quickly assembled on-site through hoisting equipment after being transported to the site, significantly shortening the construction cycle and meeting the high requirements for construction efficiency in places such as.

Our advantages

1. Quality Control System Construction
A full-link control system of "raw materials - production - inspection - installation" is established. High- steel meeting national standards is selected and re-inspected by a third party. Automated equipment is introduced to process with an accuracy of ±1mm (exceeding the industry of ±3mm), and key indicators such as welding and anti-corrosion are 100% spot-checked. ISO9001 certification is obtained and quality traceability is realized through digital platforms to ensure project safety and durability.

2. Design Capability
A team of more than 10 senior engineers provides full- services. The structure is optimized based on project requirements, climate, and budget (e.g., using trusses for large-span and steel frames - supports for highrise). Professional software is used to convert processing drawings, and BIM technology is introduced for collision detection, increasing the efficiency of implementation by more than 30%. Custom steel structure schemes, such as irregular and modular ones, can also be provided.

3.Deliver services with precision
Before the delivery of the materials and components of the steel structure office building, our professional logistics personnel will carefully verify the list of materials in the factory, and count the quantities one by one to ensure that there are no omissions and errors. At the same time, combined with the actual needs of the project site and the construction progress, the optimal transportation route and distribution plan are planned, and the reliable transportation vehicles and advanced logistics management system are used to deliver the goods to the construction site safely and on time, providing a solid guarantee for the smooth development of the project.

Choosing our steel structure storage products is to choose professionalism, quality, efficiency and value. We look forward to working with you to create exceptional construction projects.

Company Profile

China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group integrating for steel structure design, manufacture and installation. We have estabulished over 21 years.The factory covers an area of 30 hectares.


We are one of the largest steel structure manufacturers in northern China, with 21 years of production experience and an annual production of 400,000 tons of steel structure products.
We have many successful cases, and we have built more than 1,000 steel structure projects such as Porsche factories.
Our company website is https://www.ctsteelstructure.com
If you are preparing a construction steel structure project, we look forward to working with you.

Packaging & Shipping

1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box

FAQ

Q: Are you a factory or trading company?
A: We are a manufacturing factory, we can provide one-stop service for customers. You can get the best service and competitive prices.

Q: How can I get a quote for a project?
A: You can contact us via email, phone, Trade Messenger, WhatsApp, Skype, Viber, etc., and we will get back to you as soon as possible.

Q: Do you accept container loading inspections?
A: You are welcome to send inspectors to visit the factory, not only at the time of loading, but also at any time. If it's not convenient, we also provide real-time video display.

Q: Do you provide design services?
A: Yes, we can design complete solution drawings according to your requirements. They use software such as Auto CAD, PKPM, MTS, 3D3S, etc.

Q: What's the payment terms?
A: Payment terms: T/T, L/C, other payment methods can be negotiable

Q: What's the delivery time?
A: The delivery time depends on the order quantity.
