Galvanized anti-corrosion portal steel structure industrial building workshop factory building

Galvanized anti-corrosion portal steel structure industrial building workshop factory building

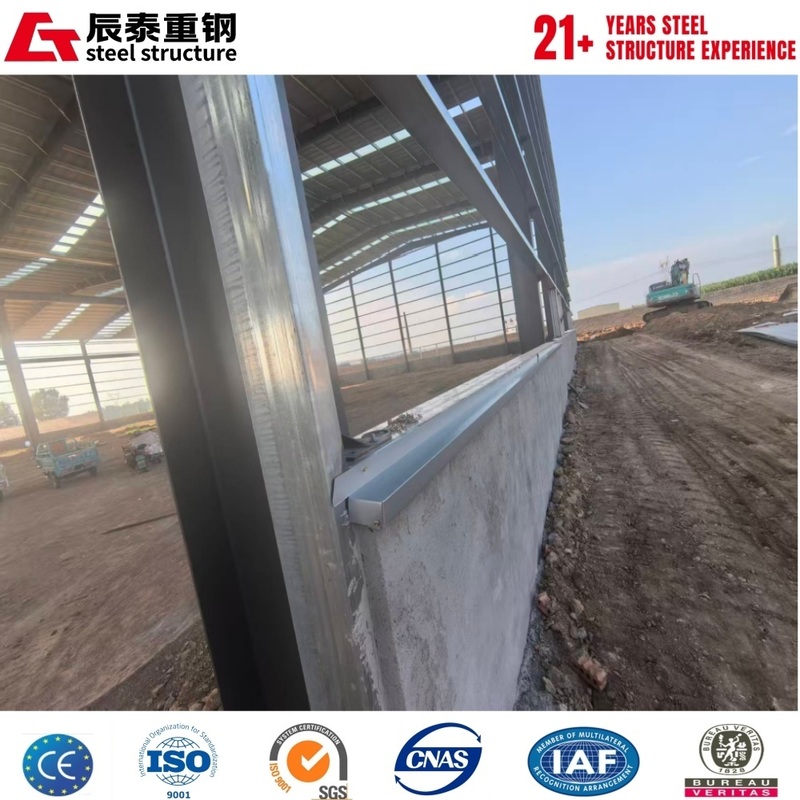

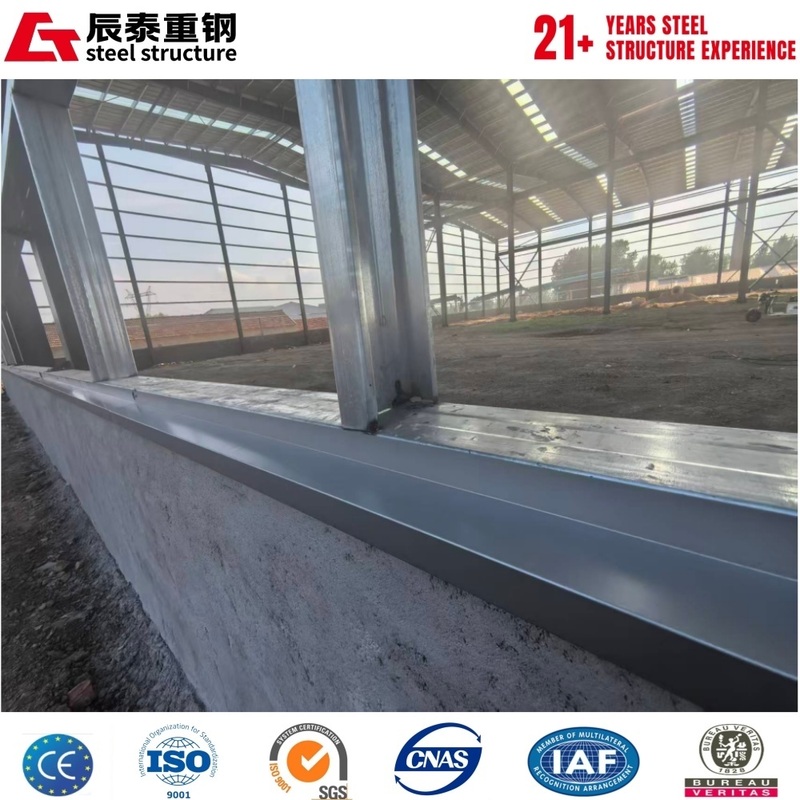

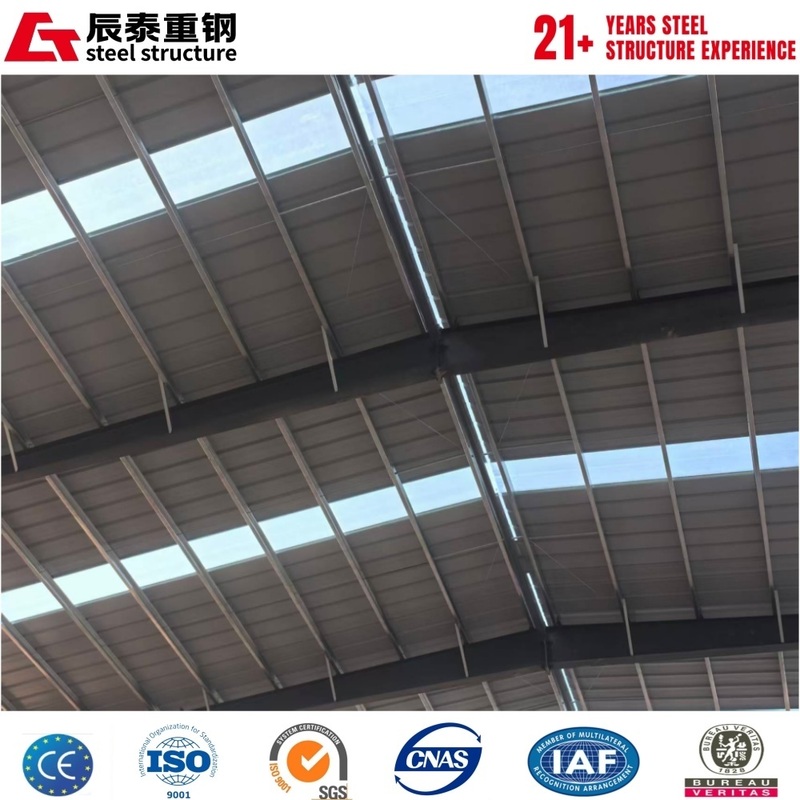

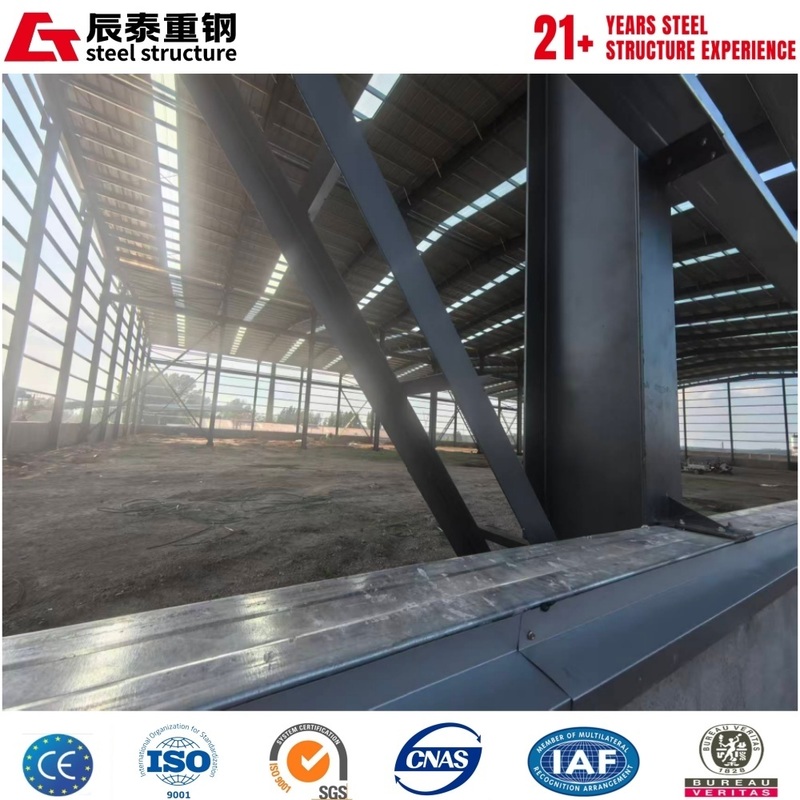

Steel structure workshop buildings are a widely used modern factory form in the field of industrial production, with steel as the core load-bearing, and color steel sandwich panels (or composite wall panels) as the enclosure structure, which is both practical and economical. Its main body is composed of factory-prefabricated components such as H-shaped steel beams, C-shaped steel purlins, and steel columns, which are quickly assembled on site through bolt splicing or welding, with a cycle 30%-50% shorter than traditional brick-concrete workshops, and can quickly meet the needs of enterprises for production.

In terms of performance, steel structure rely on the properties of high strength and light weight of steel, which can easily achieve a column-free design with a large span of 20-60 meters, with open indoor space without support columns blocking, which can not only adapt to the installation and operation of heavy mechanical equipment, but also facilitate the flexible division of production areas, storage areas, areas and other functional areas, with a significantly higher space utilization rate than traditional factory buildings. At the same time, after hot-dip galvanizing and anti-corrosion treatment, steel can resist the humid, dusty or slightly chemical corrosion environment in the workshop, and the service life of the structure can reach 25-30 years; and overall frame has excellent seismic and wind resistance, and with the combination of fireproof paint and ventilation system, it can meet the basic requirements of industrial production for safety and environmental protection and is the preferred factory type for mechanical manufacturing, warehousing and logistics, and light industry processing.

​​

Product name	Steel structure Workshop
Length	H beam 4000-15000mm
Height	200-1200mm
Galvanizing Thickness	40 - 100 μm, etc. for Selection.
Main frame	H beam
Base	Cement and steel fouddation bolts
Specification	Custom
Bolt	Plain bolt ang high-strenth bolt
Roof&wall	Sandwich panel or color plate
Door	Sliding or rolling door
Transport Package	Seaworthy Package
Trademark	Qianfeng Chentai Steel Structure
Customized design is welcomed.
In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly.
Building Purpose: we will recommend the best design for the purpose of the building
A.Warehouse/Storage
B.Industrial workshops
C.Processing plants
D.Greenhouse structure for breeding
E.Medical Warehouse
F.Office buildings
G.Agriculture Barn

​

​

Package Size	100.00cm * 100.00cm * 100.00cm
Package Gross Weight	100.000kg

​Steel structure building

1. The core components of the steel structure workshop (such as H-shaped steel beams, C-shaped steel purlins, steel columns) are all in the factory with standardized prefabrication, ensuring dimensional accuracy through numerical control cutting and welding processes, and reducing on-site processing errors. On-site construction only needs to bolted together or simply welded, without having to wait for concrete curing like traditional masonry workshops, and without the need for complex masonry work. The construction is shortened by 30%-50% compared to traditional masonry workshops, which can help enterprises quickly complete the construction of the factory and put it into production, effectively the initial time cost and capital occupancy cost.

2.Steel has the dual attributes of high strength and light weight. Under the same load-bearing demand, the cross-section size of steel structure components much smaller than that of the walls and columns of masonry structures, and the 20-60 meter large span column-free layout can be achieved through truss. This design allows the workshop to have an unobstructed space without support columns, and the horizontal and vertical space is open and unobstructed. On the one hand it can meet the installation and mobile operation needs of heavy machinery and equipment, avoiding the restrictions of columns on the equipment operation trajectory; on the other hand, it can flexibly the production area, raw material storage area, finished product stacking area and supporting office area according to the production process, and the space utilization rate is 20%-30% than that of traditional masonry workshops, especially for industries with high space layout requirements such as mechanical manufacturing and automobile parts processing.

3. Industrial workshops are often faced with dampness, dust accumulation, and in some industries, there is also a risk of slight acid and alkali corrosion After the surface of steel structure components is treated with hot-dip galvanizing and anti-corrosive coating, a dense protective layer can be formed to effectively isolate moisture,, and corrosive substances, preventing steel from rusting. The service life of the structure can reach 25-30 years, far exceeding that of traditional masonry. At the same time, the overall frame of the steel structure is rigidly connected with strong lateral displacement resistance. The ductility and toughness of the steel can absorb energy encountering extreme loads such as earthquakes and strong winds, and it is not easy to occur brittle fracture. With the combination of fireproof coatings and mechanical ventilation systems, it meet the safety requirements of industrial production for fire prevention, earthquake resistance, and wind resistance, and provide reliable protection for equipment and personnel.

Choose steel structure buildings from China CT Steel Structure Co., Ltd. to provide reliable, efficient and environmentally friendly solutions for your construction needs.

Why Choose Us

1.The company ensures the quality of components through "full-process quality control", strictly selecting high-strength steel that meets national standards at the source ensure that the raw materials meet the required tensile and compressive strength; in the production process, automatic cutting and CNC welding equipment are used, with standardized operation procedures to reduce errors, and at the same time, through non-destructive testing (such as ultrasonic flaw detection), mechanical performance testing and other means, the quality of the wel and the dimensional accuracy of each batch of components are verified; in the surface treatment stage, mature processes such as galvanizing and spraying anti-corrosion paint are used form a uniform and dense protective layer, which improves the weather resistance and corrosion resistance of the components, fundamentally ensuring the load-bearing safety and long-term service life of the steel workshop and workshop, and avoiding the increase of maintenance costs due to component quality problems in the later period.

2. The company has a "customized refined" design advantage, which can be designed according to the customer's industry, production needs and site conditions combined with the mechanical and physical characteristics of steel, and targeted design —— for example, optimizing the steel beam load-bearing parameters for heavy machinery factory buildings, designing large-span-free space for warehouses, ensuring that the structure meets the use function and avoids material waste; at the same time, with the help of BIM and other digital design tools the process of assembling components and the stability of the overall structure are simulated in advance, and design loopholes are eliminated to reduce the return work on site construction; In addition the design link will also take into account the later maintenance and flexibility of the space, leaving room for equipment upgrading and layout adjustment, helping customers reduce long-term operation and transformation costs

3.Transportation plan planning: according to the size, weight, quantity of the steel structure, the geographical location of the project site, traffic conditions and other factors, formulate a reasonable transportation plan. Choose the right transport vehicles, such as flatbed trucks, low-bed semi-trailers, etc., to ensure that the goods can be loaded and transported safely and stably.

Choosing our steel structure storage products is to choose professionalism, quality, efficiency and value. We look forward to working with you to create exceptional construction projects.

Company Profile

China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group integrating for steel structure design, manufacture and installation. We have estabulished over 15 years. Our factory is covering about106,5 60 square meters.
We are one of the largest steel structure manufacturers in northern China, with 21 years of production experience and an annual production of 400,000 tons of steel structure products.
We have many successful cases, and we have built more than 1,000 steel structure projects such as Porsche factories.
Our company website is https://www.ctsteelstructure.com
If you are preparing a construction steel structure project, we look forward to working with you.

Packaging & Shipping

1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box
