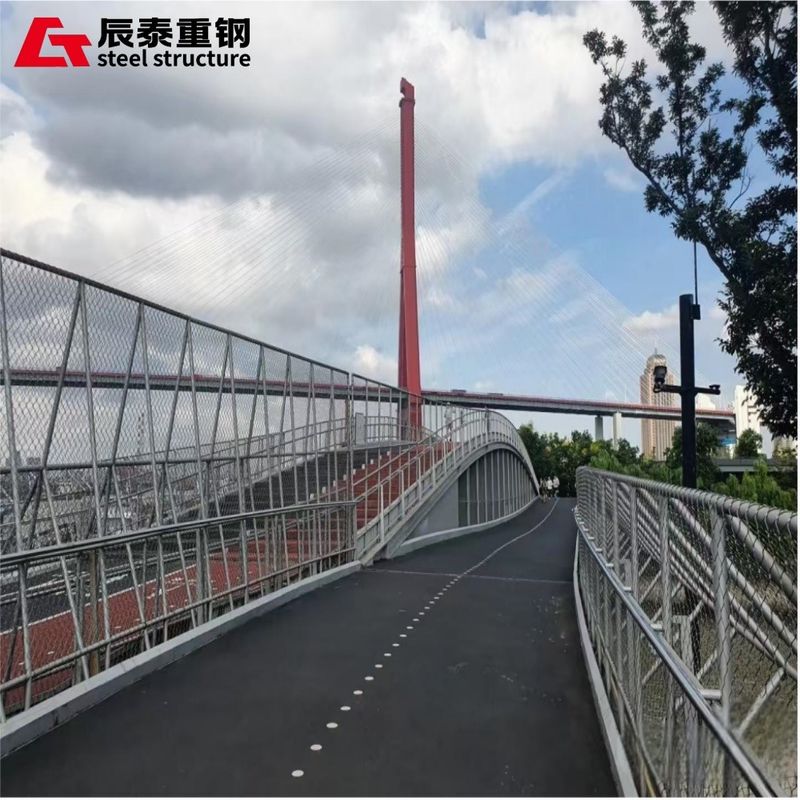

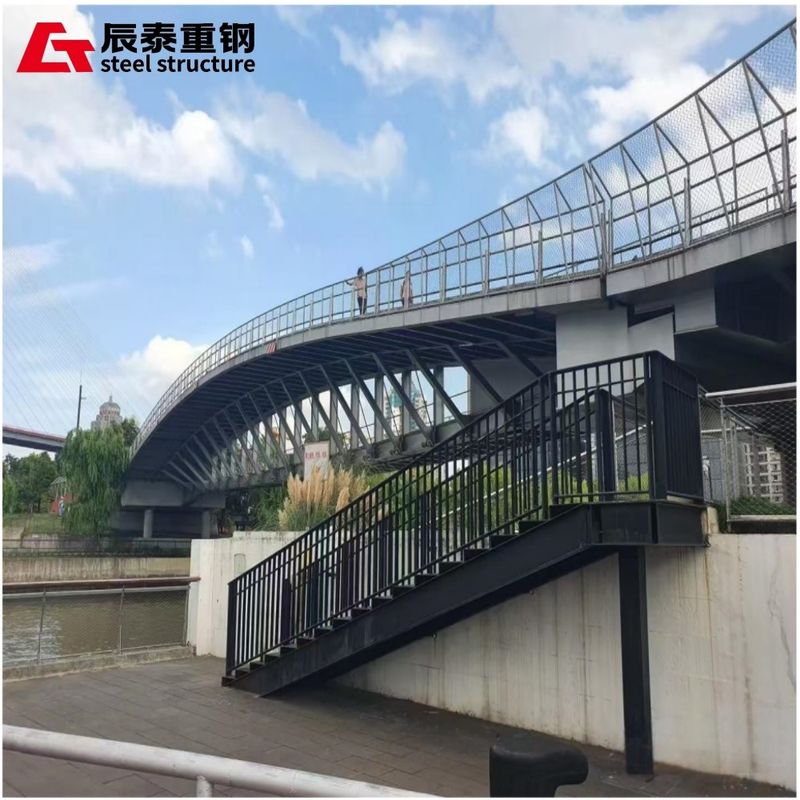

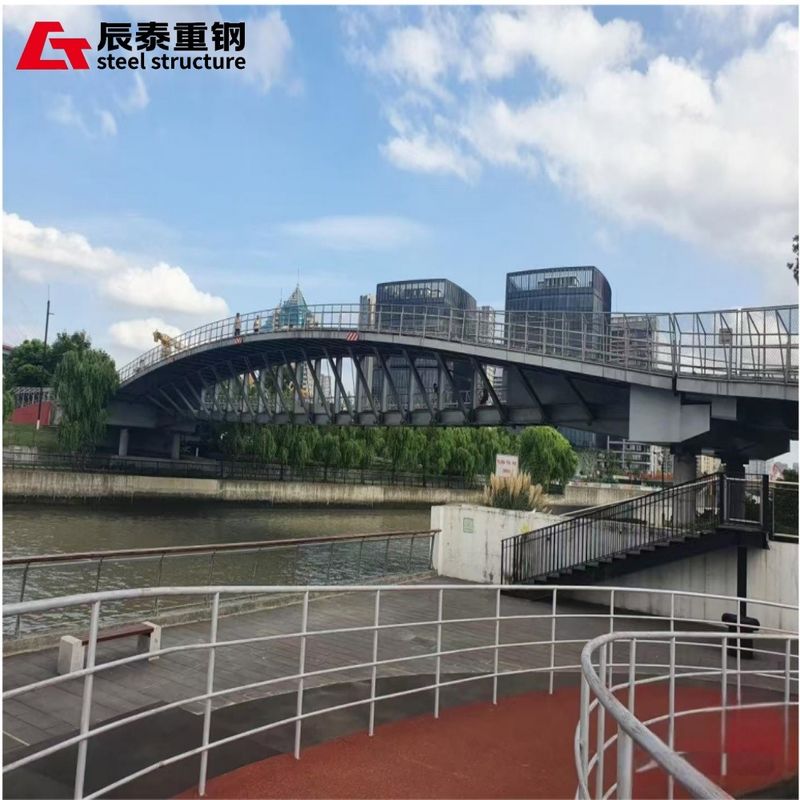

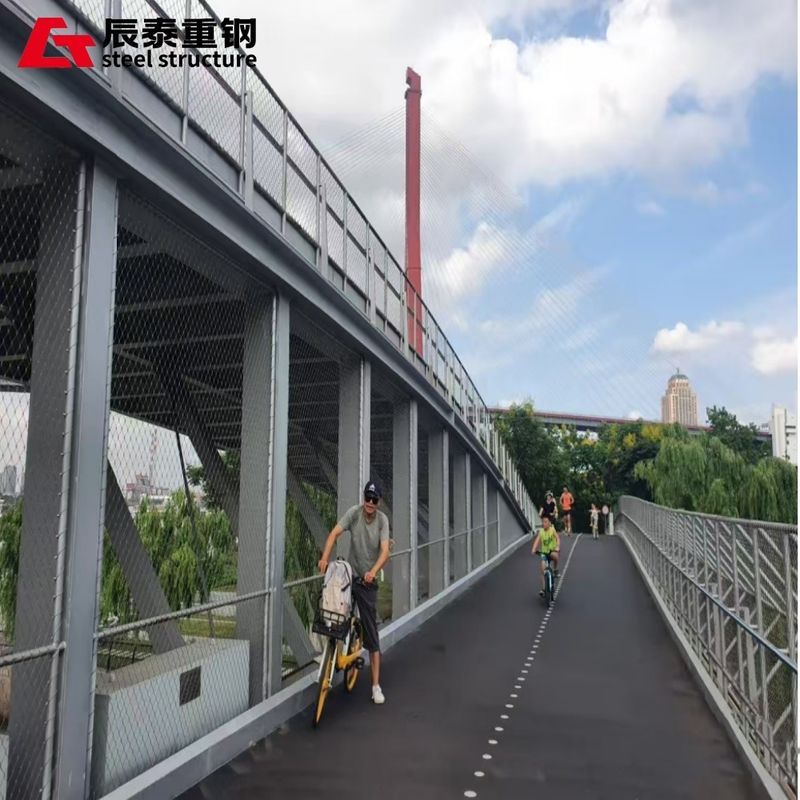

High Efficiency Prefabricated Long-span Steel Structure Bridge Building

Made in China with high efficiency prefabricated long-span steel structure bridge building

Product Description:

The steel structure bridge uses high-strength steel as the core load-bearing component, and through the structural forms of box girders, trusses, arch ribs, etc., it crosses rivers, lakes and seas and complex landforms, and achieves a span breakthrough of tens of meters to kilometers. With the characteristics of high tensile strength and good toughness, steel shows the advantages of light weight and high efficiency in long-span bridges, and its components can be prefabricated in the factory and transported to the site for assembly, with a short construction period and controllable precision, which can greatly reduce the impact of on-site operations on traffic and the environment. The surface is supported by anti-corrosion coating, fire protection treatment and intelligent monitoring system to improve the durability and safety of the structure, and the modular design is convenient for later maintenance and expansion, so that the steel structure bridge has become a functional and iconic hub node in the transportation network with strong spanning ability and modern aesthetic form.

​

Product Name	Large-span steel structure bridge
Height	10-200 M
Wind Speed	120KM/H
Wind Load	33kV-330kV
High Strength Bolt	M20,10.9S
Top brace	SHS150*8
Steel beam	HW400*408*21*21
Tie bar	Q235 steel pipe
Brace	Q235 round bar
Earthquake-resistance	based on local requirement

Product Advantages:

With the excellent mechanical properties of high-strength steel, steel structure bridges can easily achieve super-large spans. Through the suspension cable, cable-stayed and other structural forms, the main span can reach more than a kilometer, such as the suspension bridge uses the strong tensile ability of the main cable to cross the wide sea area and canyon, without the need to set up a large number of piers in the water, reduce the impact on the waterway and ecology, provide sufficient space for shipping, flood discharge, etc., and perfectly solve the problem of transportation connection in the complex geographical environment.

The steel structure bridge adopts the mode of factory prefabrication and on-site assembly, which significantly improves efficiency. Steel beams, steel boxes and other components are accurately formed in the factory through CNC machining and automatic welding, and the error is controlled at the millimeter level, and the hoisting equipment is used to quickly splice after transportation to the site, and the construction period is shortened by about 40% compared with concrete bridges. At the same time, this kind of dry construction greatly reduces on-site wet operations, reduces noise and dust pollution, and is less disturbed by weather factors, ensuring the stability of the project progress, especially suitable for key projects in dense urban areas or tight construction periods.

The steel structure bridge adopts a modular design, which is convenient for later functional upgrading and structural transformation. As traffic flows grow or demand changes, lanes, sidewalks or pipelines can be flexibly added; After the end of the bridge's service life, the steel can be 100% recycled and reused, reducing construction waste and resource waste, in line with the concept of green development. Its simple and fluid shape and modern material characteristics can also be integrated with the surrounding environment to create a landmark building with both practical function and landscape value.

​Our advantages

High-quality material supply: Establish long-term and stable cooperative relations with well-known steel suppliers, and strictly control the quality of materials. From the source, ensure that the strength, toughness and other properties of the main materials such as hot-rolled section steel, cold-formed thin-walled section steel and steel plate meet high standards, and provide a solid guarantee for the construction quality. At the same time, auxiliary materials such as fire prevention and anti-corrosion are also strictly screened to ensure the durability of the building.

Efficient construction capability: mature factory prefabrication and on-site installation process. The factory has advanced production equipment, which can realize high-precision processing of steel structural components and ensure the stable quality of prefabricated components. The on-site construction team is skilled, using advanced installation technology and equipment, with efficient project management, and strictly following the construction plan, greatly shortening the construction period and reducing the project cost.

Comprehensive service system: provide one-stop service from pre-project consultation, scheme design, construction to post-maintenance. In the early stage of the project, provide customers with professional technical consultation and feasibility analysis; During the construction process, communicate with customers in a timely manner to solve problems; After the project is delivered, a sound after-sales service system will be established, regular return visits will be provided, and maintenance guidance will be provided to ensure the long-term stable operation of the building.

Company Profile

China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group integrating for steel structure design, manufacture and installation. We have estabulished over 15 years. Our factory is covering about106,5 60 square meters.

Main products: steel structural warehouse, workshop, high rise steel building, school, hotel,office building, exhibition building, show room, shopping mall, stadium,Agricultural project (stable/cattle barn, poultry house,pig house), car parking, hangar,shed,storage room, prefab house, container house, Sandwich panel,corrugated steel sheet, C&Z sec- tion steel, door and windows and cranes.

Packing: we pack all the parts on the steel pallet and push into the container when clients received they can pulling them out within half an hour. It can help our clients to save a lot of time and labor cost during unloading.
Container loading; We will supply the materials list, the packing lists based on the contents we loaded into container. Showing the quantity, part no. length, container no, seal no.after finishing the container loading.

Installation drawings: we will supply the detailed installation drawings and video to show how to install the products. Even send the engineers to site for installation help.

"Quality and service first "is our company's development goals. We hope we will develop together and win more projects together!

Shipping & Packaging

1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.
Port
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box
