Factory Prefabricated H-shaped Steel Structure Metal Frame Building Industrial Workshop

Factory prefabricated H-shaped steel structure metal frame building industrial workshop

​

Product name	Steel structure workshop
Length	H beam 4000-15000mm
Height	200-1200mm
Galvanizing Thickness	40 - 100 μm, etc. for Selection.
Main frame	H beam
Base	Cement and steel fouddation bolts
Specification	Custom
Bolt	Plain bolt ang high-strenth bolt
Roof&wall	Sandwich panel or color plate
Door	Sliding or rolling door
Transport Package	Seaworthy Package
Trademark	Qianfeng Chentai Steel Structure
Customized design is welcomed.
In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly.

​​

Package Size	100.00cm * 100.00cm * 100.00cm
Package Gross Weight	100.000kg

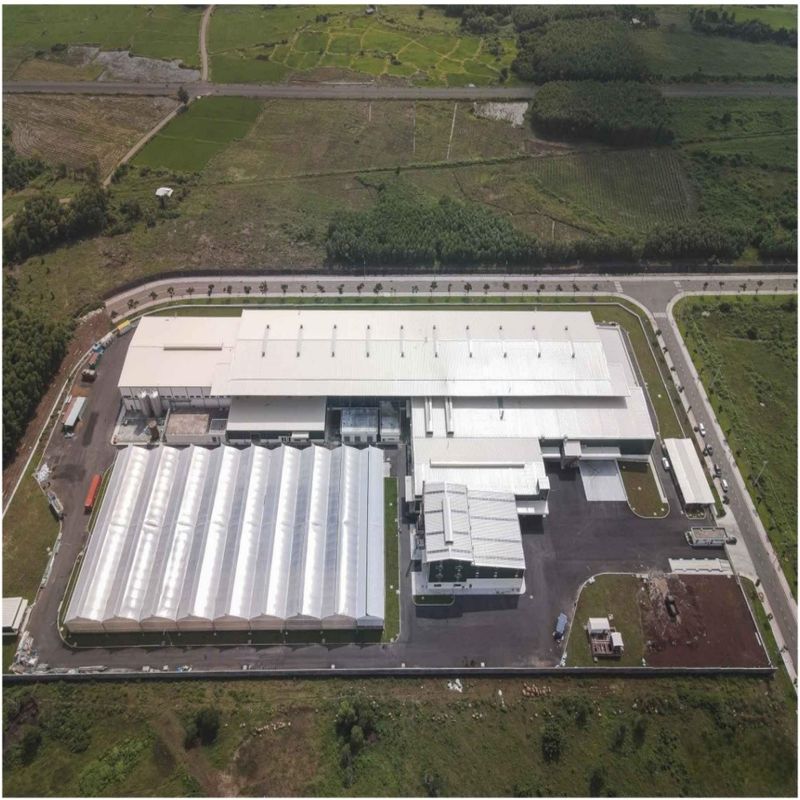

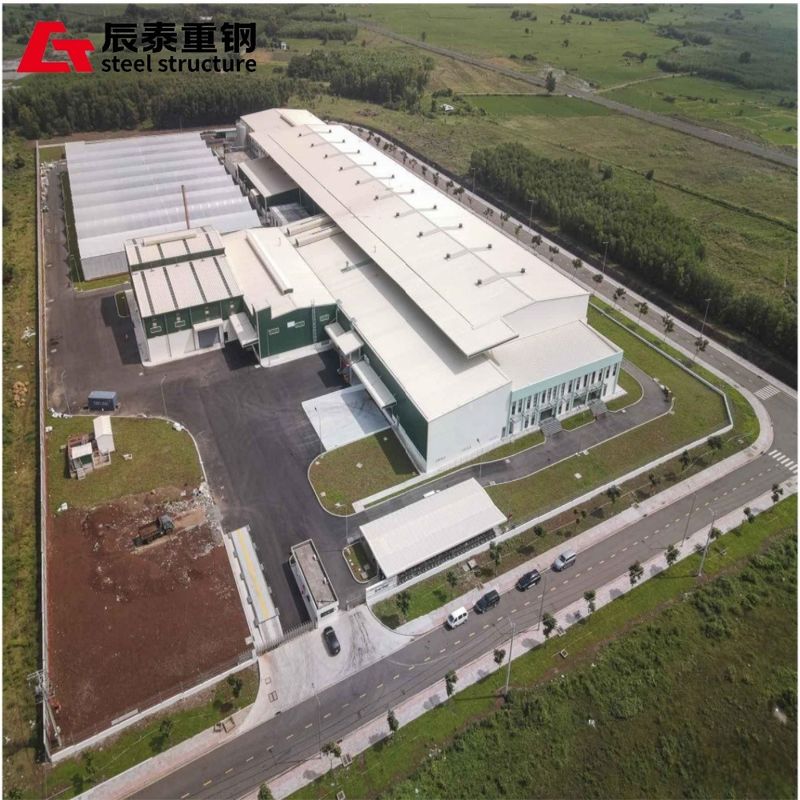

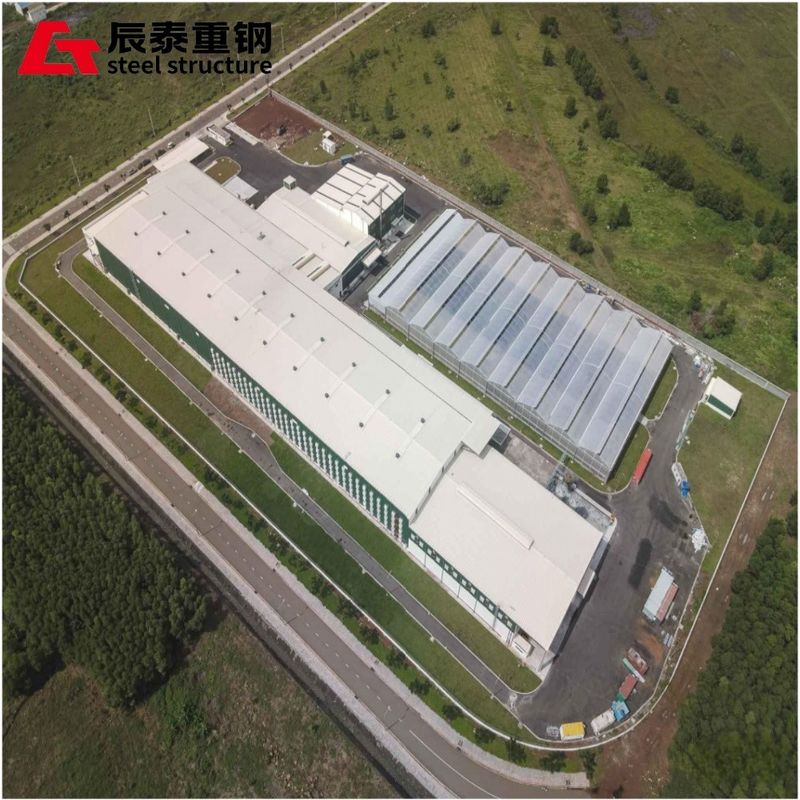

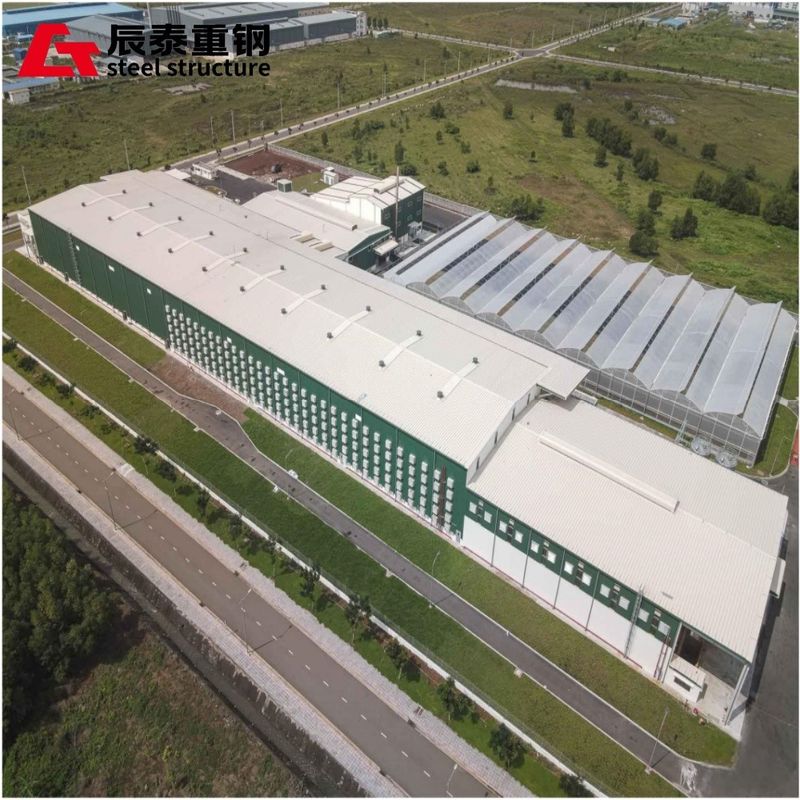

The steel structure workshop is mainly composed of the main load-bearing system, the perimeter protection system and auxiliary facilities. The main load-bearing system is connected by torsional shear high-strength bolts or full penetration welding process through the I-shaped steel column and the I-shaped steel beam to form a rigid frame structure, which is the main stressed component of the workshop, and can be designed as a heavy-duty structural form of single-span double-slope, multi-span multi-layer or crane beam according to the requirements of the production process; The perimeter protection system covers exterior wall and roof enclosure materials, such as glass wool color steel plates, aluminum-zinc profiled steel plates, etc., which have the visual effects of waterproof, impermeable, thermal insulation and modern architectural style. Auxiliary facilities include material lifting equipment (such as gantry cranes, electric hoists), intelligent temperature control ventilation systems, evacuation indication lighting systems and fire alarm linkage devices, material lifting equipment is laid along the lower chord track of the roof truss, and intelligent load monitoring system ensures the smooth lifting and accurate positioning of tonnage components.

Product Advantages:

The steel structure workshop uses high-strength steel as the main skeleton, which has the characteristics of light weight, high strength and good toughness, and its bearing capacity far exceeds that of the traditional concrete structure, which can easily realize the workshop layout of large span and large space to meet the special production needs of heavy equipment installation and large-scale component processing.

The ductility and seismic performance of steel are remarkable, which can effectively resist natural disasters such as earthquakes and typhoons, greatly reduce the risk of structural collapse, and provide more reliable safety guarantee for personnel and equipment in the workshop.

Steel structure components can be accurately calculated and designed, and the cross-sectional shape and size can be flexibly adjusted, and the personalized requirements of different production processes for workshop height, span and load can be adapted, especially suitable for machinery manufacturing, warehousing and logistics, automobile assembly and other industries with high requirements for space flexibility.

Industrial production and assembly, the construction period is short and the cost is controllable
The production of components in the steel structure workshop is highly industrialized, and the steel beams, steel columns, purlins and other components are processed in the factory through a standardized process, with high precision and stable quality, which reduces the uncertainty of on-site construction.

The site adopts modular assembly construction, no large-scale wet work (such as concrete pouring, masonry masonry, etc.), the construction process is simplified, and the construction period can be shortened by 30%~50% compared with the traditional structure, which significantly reduces labor costs and time costs, especially suitable for projects that need to be put into production urgently.

The reusability of steel further optimizes costs: if the workshop needs to be dismantled or remodeled, the steel structure components can be dismantled and recycled, with a recycling rate of more than 90%, which greatly reduces the cost of construction waste disposal and reduces resource waste.

Our advantages:

Design Service Advantages
Free 3D drawing design: We provide you with the intimate service of designing free architectural 3D drawings. The professional design team uses advanced design software to transform your ideas into intuitive and accurate 3D models, so that you can clearly see the appearance of the plant after completion before the project starts, plan the layout in advance, effectively avoid possible design problems in the later stage, and ensure the smooth progress of the project.

Standard Advantage
It has a variety of steel structure design guidelines, covering internationally renowned standards such as EN10902 European standard, AS4100 Australian standard, AISC-360-05 American standard, etc. Our design team is familiar with and follows these international standards, and can choose the most appropriate standard for design according to your project needs and actual situation, so as to ensure that the design and construction quality of the plant reaches the international advanced level, and provide international quality assurance for your project.

Material advantages
High-strength steels, such as S355JR, Q355B, GR50, AS3678-350, etc. These steels have the advantages of high strength, good toughness and strong corrosion resistance, which can effectively improve the bearing capacity and durability of the plant. Buildings built with high-strength steel can not only withstand greater loads, but also operate stably for a long time under harsh environmental conditions, extending the service life of the plant.

Structural form advantages
It adopts H-beam and I-beam steel portal frame structure. This structural form has the characteristics of clear force, direct force transmission and stable structure, which can give full play to the mechanical properties of steel and improve the overall stiffness and seismic performance of the structure. At the same time, the construction speed and low cost of the portal frame structure can save you the construction time and cost of the project.

Company Introduction:

China CT Steel Structure Co.,Ltd of BY GROUP is a comprehensive industrial group integrating for steel structure design, manufacture and installation. We have estabulished over 15 years. Our factory is covering about106,5 60 square meters.

Main products: steel structural warehouse, workshop, high rise steel building, school, hotel,office building, exhibition building, show room, shopping mall, stadium,Agricultural project (stable/cattle barn, poultry house,pig house), car parking, hangar,shed,storage room, prefab house, container house, Sandwich panel,corrugated steel sheet, C&Z sec- tion steel, door and windows and cranes.

Packing: we pack all the parts on the steel pallet and push into the container when clients received they can pulling them out within half an hour. It can help our clients to save a lot of time and labor cost during unloading.

Container loading; We will supply the materials list, the packing lists based on the contents we loaded into container. Showing the quantity, part no. length, container no, seal no.after finishing the container loading.

"Quality and service first "is our company's development goals. We hope we will develop together and win more projects together!

Packaging & Shipping:

1. All standard components are packed in plywood box.
2. All steel structure weld components are packed with blanket or bubble-wrap to avoid scratch during loading and unloading.
3. All steel structure are packed in steel pallet together into container, much save loading and unloading time, labor cost.
4. All sandwich panel are packed in steel pallet.
5. Material components will be made container load plan, also make regional unloading plan to avoid retransport on site.
6. All equipment pasted with English lable
7. Small equipment will packed in carton or plywood box
